Gas and D/I Water High Flow Regulators(NPT 1/2”, 3/4”, 1”)

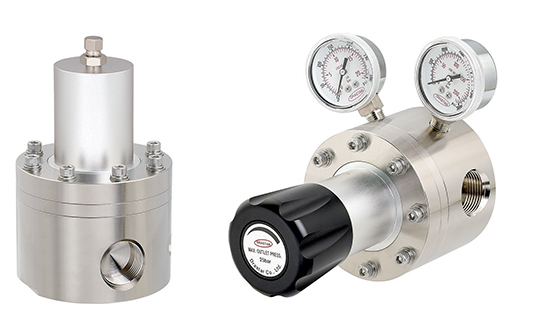

DR110 Series having Cv5.0 is a pressure reducing regulator ideally designed to use for high flow application in the field of general industrial gas pipeline, air pipeline, waster or DI water lines. 3/4” and 1” NPT and BSP connections are available.
◈ 3/4” and 1” NPT or BSP port of connection available
◈ Inlet, outlet gauge(s) installed as standard
◈ Drop-preventing function is built in
◈ Inlet pressures are 350 bar (5000psi) , 250bar(3600psi) or 42bar(600psi) and outlet pressures are 2bar(30psig), 4bar(60psi), 7bar(100psig), 10bar(145psig), 20bar(290psig), 40bar, 70bar, 100bar, 150bar, 200bar(2900psi)
◈ Panel mounting and wall mounting bracket available as option
◈ Design proof pressure: 150% of maximum rated
◈ Suitable for D/I water, industrial gases, air or water line industrial control
[DRASTAR Regulators are Oil-free]
※ DRASTAR’s all pressure regulators are assembled, cleaned, inspected, and packed in clean-room equipped with clean bench, helium detector, particle counter, ultrasonic cleaner, ultrapure water system, vacuum packaging machine, etc. through oxygen cleaning procedure in compliance with process and regulations indicated in CGA 4.1. and or ASTM G-93 and are free of any grease or oils.
※ Caution: Filtering (gas 7㎛ ~ 15㎛, water 15㎛ ~ 80㎛) is a MUST to use in the general gas application other than high purity gases. Otherwise, it may cause a failure to the regulators. It is strongly recommended to install filter for extension of life span and saving the maintenance expense.
Ordering Information. |
