Additional information
Input 0-10 Vdc, 0-5 Vdc, 1-5 Vdc, 1-9 Vdc, 4-20 mA
Output Range 0-120 psig (0-8 bar), 0-30 psig (0-2 bar), 0-60 psig (0-4 bar), 2-60 psig (0.14-4 bar), 3-120 psig (0.2-8 bar), 3-120 psig (0.20-8 bar), 3-15 psig (0.20-1 bar), 3-27 psig (0.20-1.8 bar), 6-30 psig ( 0.40-2.0 bar)
Max. Supply Pressure 150 psig (10 bar)
Flow Capacity 20 scfm (566 Nl/min)
Ambient Temperature Limits -40° to +158°F (-40° to 70°C)
Impedance See Specification Sheet
Linearity <+ 0.5% of span, <+ 2.0% of span, <+ 1.5% of span
Hysteresis & Repeatability < 0.5% of span, < 1.0% of span
Supply Pressure Sensitivity - (% of span per 1.0 psig (0.07 bar)) < 0.1%, < 0.4%, < 0.02%
RFI/EMI Effect <0.5% of span change in output pressure per En 61000-4-3:1998, Amendment 1, Performance Criterion A
Port Size 1/4 NPT (Pneumatic), 1/2 (Electric)
Media Clean, dry, oil-free, instrument air, filtered to 40 micron
Electrical Connection Conduit 1/2" NPT, DIN 43650
Mounting Direct wall, panel, 1 1/2" pipe, DIN rail, manifold
Materials (Body) Aluminum
Materials (Other) Buna-N, Stainless Steel, Brass, Zinc-plated Steel
Enclosure Nema 4X (IP65)
Weight Standard Range 1.3 lbs. (0.60 kg.)
Weight Zero Based Range 1.7 lbs. (0.77 kg.)
Home / Pressure Transducers / I/P Transducers / Type 550X I/P, E/P Transducer

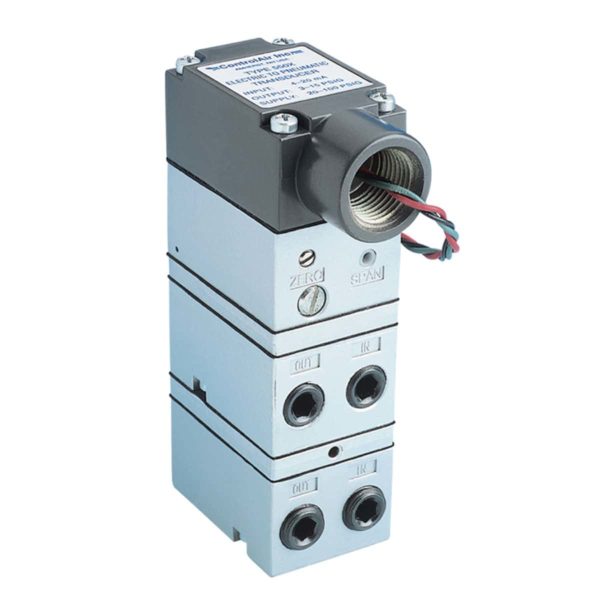

Type 550X I/P, E/P Transducer
PDF Sales SheetInstructions
Product Configurator3D CAD MODELS
Description
Specifications

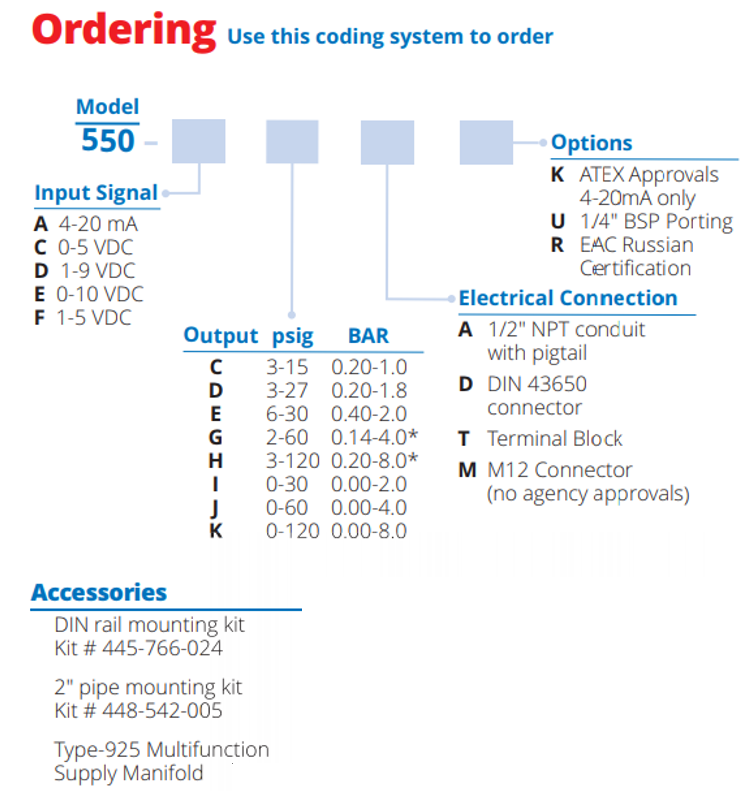

Ordering Information
