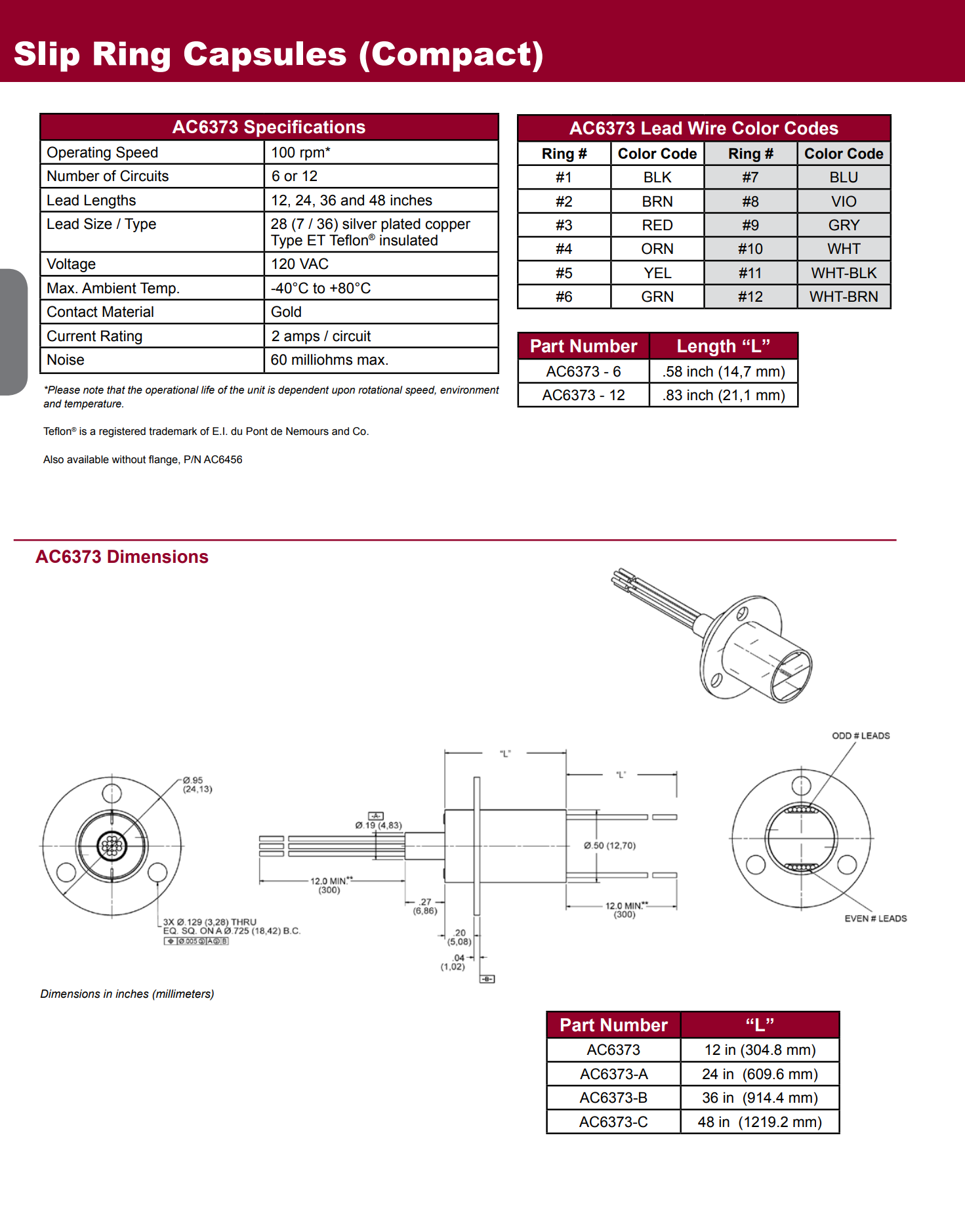

AC6373
紧凑型滑环胶囊
|
运行速度 |
100 转/分钟* |
|
电路数量 |
6或12 |
|
引线长度 |
12, 24, 36 和 48 英寸 |
|
铅笔尺寸 / 类型 |
28 (7 / 36) 镀银铜
ET 型 带有特氟龙® 绝缘 |
|
电压 |
120 伏交流电 |
|
最高环境温度 |
-40°C 到 +80°C |
|
联系材料 |
金 |
|
当前评分 |
2安培 / 电路 |
|
噪音 |
最大60毫欧。 |
请注意,装置的使用寿命取决于旋转速度、环境和温度。
特氟龙® 是杜邦公司 (E.I. duPont de Nemours and Co.) 的注册商标。
滑环可以用于任何需要在固定结构与旋转结构之间传输电力和/或数据的同时实现不受限制连续旋转的 electromechanical 系统。滑环也被称为旋转电气接口、换向器、集电器、旋转接头或电气旋转接头。
AC6373紧凑型滑环胶囊提供高达12个2安培额定触点,设计尺寸小,直径为1/2英寸。在转子和定子上都提供颜色编码的导线,以简化电气连接。在设计上与我们非常受欢迎的类似。
AC6023 家庭,AC6373在处理系统尺寸限制方面提供了极大的灵活性。它有两种电路配置:6路和12路。
功能
6和12电路模型
2安培,120伏交流电回路
精密装配以提供卓越的旋转寿命
速度高达 100 转/分钟
紧凑尺寸,直径1/2英寸,长.58英寸或.83英寸
金色 • 机壳上的安装法兰
灵活的,彩色编码的,镀银的,多股铜导线
卓越的低级控制信号处理
福利
极其紧凑
低扭矩
快速发货
高带宽传输能力
典型应用
闭路电视水平/倾斜摄像机支架
医疗设备
机器人末端执行器
微型电缆卷轴
实验室设备
AC6373
Compact slip ring capsule
Description
A slip ring can be used in any electromechanical system that requires
unrestrained, continuous rotation while transferring power and / or
data from a stationary to a rotating structure. A slip ring is also called a
rotary electrical interface, commutator, collector, swivel or an electrical
rotary joint.
The AC6373 miniature capsule provides up to 12, 2 amp rated contacts
in a small, 1/2 inch diameter design. Color-coded lead wires are provided
on both the rotor and stator to allow simplified electrical connections.
Similar in design to our very popular AC6023 family, the AC6373 allows
tremendous flexibility in dealing with system size restrictions. It is
available in 6 and 12 circuit configurations.
Features
• 6 and 12 circuit models
• 2 amp, 120 VAC circuits
• Precision assembly to provide exceptional rotational life
• Speeds up to 100 rpm
• Compact size 1/2 inch diameter, .58 inch or .83 inch long
• Gold
• Mounting flange on housing
• Flexible, color-coded, silver-plated, stranded copper lead wire
• Superior handling of low level control signals
Benefits
• Extremely compact
• Low torque
• Quick shipment
• High bandwidth transfer capability
