    • 艾默生-费希尔Fisher ,DLC3100/ DLC3020f数字液位控制器产品简介!

      发布日期:2025-11-10 15:30:06

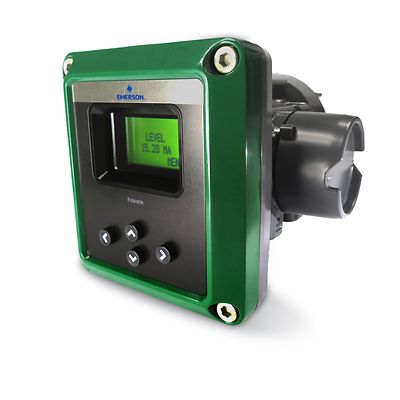

      Fisher FIELDVUE DLC3100 数字液位控制器

      FIELDVUE DLC3100 数字式液位控制器是一种 HART 通讯仪表,通过位移传感器技测量液位或两种液体之间的界面液位,或者测量液体密度。

      凭借易于使用的本地操作员界面和安全完整性等级功能,DLC3100 可轻松集成至新的或已有的安全系统中。现场诊断功能确保数字液位控制器的性能,从而控制操作。

      主要特点
      • 直观的本地操作员界面具有四个按钮和 LCD,无需外部工具即可设置和标定设备。

      • 无论环境温度如何变化,内部温度传感器仍能保证数字液位控制器的性能稳定。

      • NE107 警报可以将设备特定诊断汇总为简单的状态信号,帮助设备操作员在过程中按需采取行动。

      • 高增益的模拟-数字转换精确,能够测量被测变量的微小变化。适合在难度较大的液位、界面或密度应用中使用。

      • 在由温度改变导致变化密度的过程中使用时,通过动态温度补偿维持过程变量的准确性。

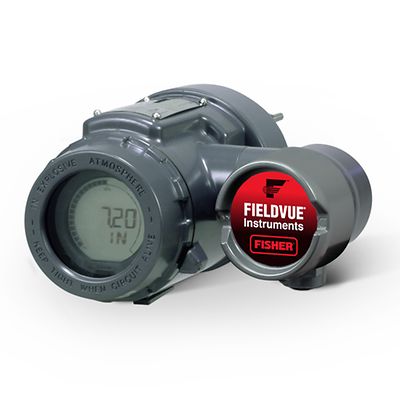

       Fisher FIELDVUE DLC3020f Fieldbus 数字液位控制器,费希尔
      区域分类本质安全、防爆、防尘燃、防火、非易燃、N 型
       Fisher FIELDVUE DLC3020f Fieldbus 数字液位控制器

      产品描述

      FIELDVUE DLC3020f 数字式液位控制器是 FOUNDATION Fieldbus 通信仪表,它通过位移传感器技术用于测量液位或两种液体之间的界面液位。

      除了报告过程液位 PV 的正常功能外,DLC3020f 使用了 FOUNDATION Fieldbus 协议,可轻松访问过程操作重要信息,并可随时集成到新的或现有的控制系统中。规格

      区域分类本质安全、防爆、防尘燃、防火、非易燃、N 型
      认证CSA、FM、ATEX、IECEx、INMETRO、CUTR、NEPSI、PED
      通讯协议FOUNDATION Fieldbus
      数据接口有线
      诊断有
      安装类型249 系列扭矩管臂安装
      操作温度标准温度
      位置控制监测
      电源回路供电(两线制)
      过程控制液位
      其他配置联系您当地的艾默生业务合作伙伴或销售办事处,了解有关此产品的更多技术规格或选项信息。

      具有最新的用户界面技术。 除了报告 PV,DLC3020f 还可以充当 PID 控制器或液位开关。

      引导设置和标定,以简单易用的版式指导您完成仪器设置、过程流体选择和标定。

      动态温度补偿,在需要时集成过程流体温度,以便密度补偿能够保持 PV 准确性。

      选择/定义工艺流体简单轻松,无需重新标定即可对流体进行更改。

      可保存日志(包括标定、仪表设置和过程流体数据)供将来参考,或在成批或连续应用中重新使用。

      最新的艾默生高端电子设备增强了的自身性能和可靠性。





      费希尔FISHER
      高度可靠的流体控制技术、压力控制技术以及常压/低压储罐压力控制方案,可帮助您实现稳定的工艺流程调节和开关过程。
      持续保持安全、高效和直观的过程控制

      我们深知过程故障的后果会非常严重,因此我们坚定不移地致力于严格遵守标准和流程,从而确保创新而可靠的产品设计。

      多年以后,随着 Fisher 品牌不断推出产品,客户也将逐渐了解它所代表的诚信。


      Fisher FIELDVUE DVC7K 智能阀门定位器
      提供具有实时分析功能的 Advice at the Device (设备自检自荐)技术,用于进行阀门健康诊断和采取规范性纠正措施。
      查看产品详情上一步下一步
      改变阀门与世界的互动方式
      艾默生拥有一系列全新的创新性解决方案,这些创新正在改变工业阀门与全球最终用户的互动方式。这些解决方案分为四大类:

      FIELDVUE 仪表,Valve Reliability Suite 解决方案

      严苛工况创新技术

      可持续发展解决方案

      智能阀门性能管理

      互联、直观的预测性阀门监测

      已解决的棘手应用问题

      推动可持续发展未来,智能阀门性能管理

      我们的 Fisher FIELDVUE 技术通过易于使用的界面和灵活的连接方式搭载了 Advice at the Device(设备自检自荐)技术,可以实时分析数据。

      Fisher FIELDVUE DVC7K 智能阀门定位器Fisher FIELDVUE DVC7K 通过灵活的连接方式和易于使用的界面搭载了 Advice at the Device (设备自检自荐)技术;

      您可在其上实时分析数据以评估阀门性能。

      Fisher FIELDVUE DPC2K 数字过程控制器Fisher FIELDVUE DPC2K 数字过程控制器是一款电动气动 PID 控制器,可以替代气动控制器来满足单个连续 PID 回路需求。

      Fisher FIELDVUE 4400 数字阀位变送器Fisher FIELDVUE 4400 数字阀位变送器提供旋转阀、直通阀、紧急泄放口、减震器或其他设备的位置信息。

      它利用量程百分比和开/关指示,通过准确的非接触反馈来指示设备位置。

      调节阀选型
      无需为确定调节阀的技术规格而担忧。
      阀门备件询价
      Valve Reliability Suite 解决方案为客户提供直观、预测性和互联性建议,并提供数据驱动的可操作性建议,提高阀门的可靠性和性能。
      调压器工具包,查看调压器产品和资料,帮助解决您的具体控制问题。
      提高石油和天然气燃烧器的性能和可靠性

      Fisher 119EZ 和 119EZS 燃气阀可以帮助当今颇具挑战的石油和天然气燃烧器应用解决低效运行问题,增强过程安全性。



      了解艾默生
      艾默生 (NYSE: EMR) 是一家全球技术与软件公司,为世界的重要行业提供创新解决方案。

      通过其领先的自动化产品组合,包括其 majority stake in AspenTech,艾默生帮助混合、流程和离散制造商优化运营、保护人员、减少排放并实现其可持续发展目标。

      欲了解更多信息,请访问 Emerson.com
