手动断开开关在维护和维修期间提供安全的隔离，但它们并非设计用于在负载下切断电流，尤其是在高压直流系统中，由于电弧难以熄灭。

本应用说明解释了手动开关在负载下打开时发生的物理电弧机制、涉及的损坏和安全风险，以及为什么这些开关仅应用于隔离。

它描述了正确的设计方法：使用专用的设备，如带有电弧灭弧机制的接触器或断路器，来切断高压、大电流电路。

该指南有助于工程师设计安全的维修和隔离程序，并为负载切断选择正确的设备。



主题：开关与电弧控制、安全与隔离



相关产品：

美国RINCON POWER高压电池断开

美国RINCON POWER高压直流接触器





ABSTRACT

Manual disconnect switches are widely used in high-voltage systems to provide safe isolation during maintenance and service operations.

However, they are not designed to interrupt current under load, especially in high-voltage DC systems where arcs are difficult to extinguish.

This application note explains the risks associated with opening a manual disconnect under load, the physical mechanisms involved, and

the correct system design approach to ensure safe and reliable operation.

Introduction

Using a manual disconnect switch to open a high‑voltage load while current is flowing is generally not

recommended. These switches are designed to operate under normal conditions per product specifications and

are not intended to interrupt high currents. Attempting to open a high‑voltage circuit with a manual switch while

current is present can cause serious issues. What Happens When a Manual Switch Opens Under Load

Arcing

When a circuit is interrupted, especially at high voltage and current, an electric arc can form between the contacts

of the switch. This arc can be sustained by current flow,and it can cause damage to the switch contacts, leading

to increased resistance, wear, and potential fire hazards.Contact Damage

The high current flowing through the switch at the moment of disconnection can cause damage (erosion) to the

switch contacts. Over time, this can degrade the performance of the switch and lead to failure.Safety Hazards

Opening a high-voltage circuit under load poses significant safety risks. The arc produced during

disconnection can generate intense heat and emit harmful substances. In a sealed switch, pressure can build up

causing the switch to rupture. This can pose a danger to both the equipment and personnel in the vicinity.

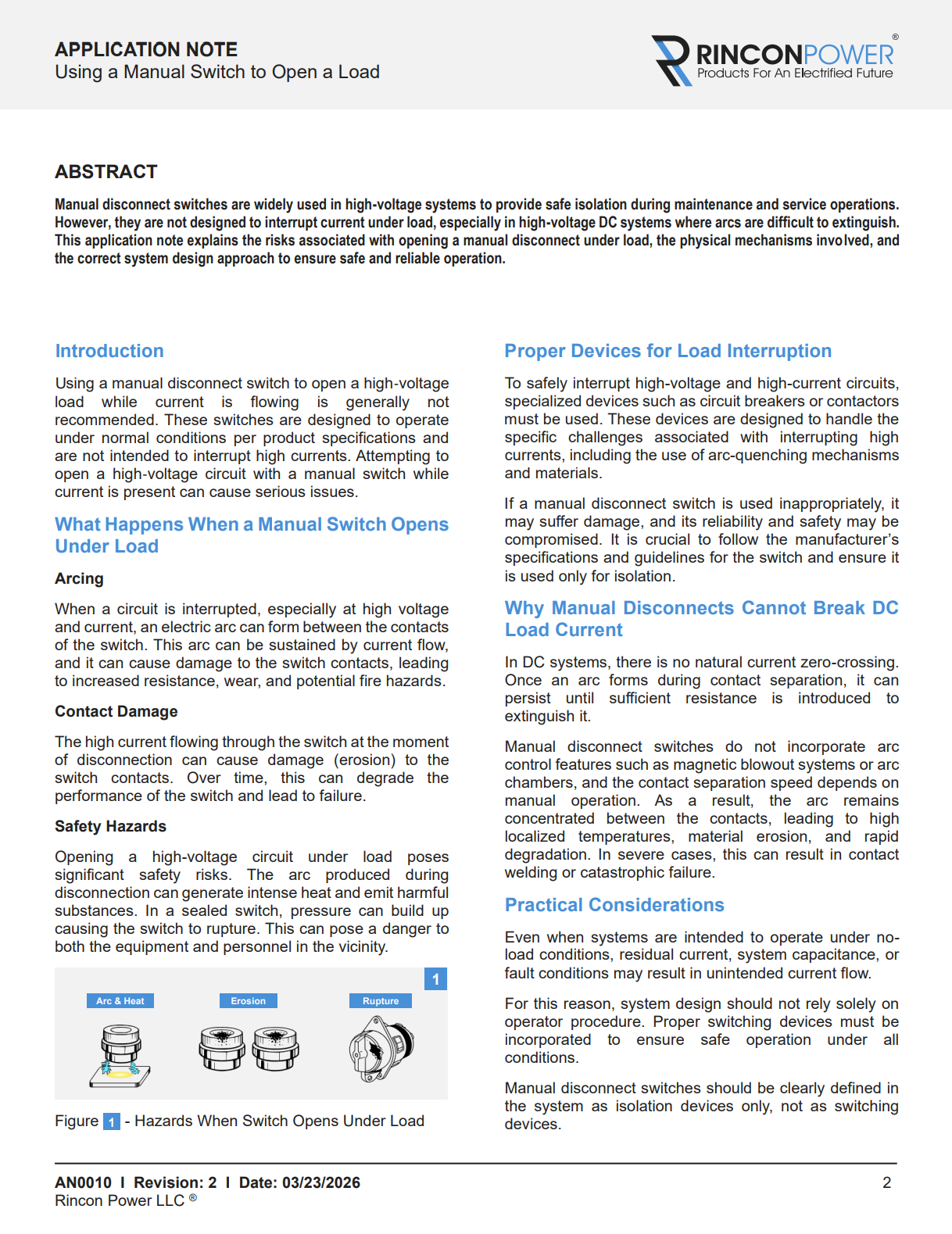

Figure - Hazards When Switch Opens Under Load Proper Devices for Load Interruption

To safely interrupt high-voltage and high-current circuits, specialized devices such as circuit breakers or contactors

must be used. These devices are designed to handle the specific challenges associated with interrupting high

currents, including the use of arc-quenching mechanisms and materials.

If a manual disconnect switch is used inappropriately, it may suffer damage, and its reliability and safety may be

compromised. It is crucial to follow the manufacturer’s specifications and guidelines for the switch and ensure it

is used only for isolation. Why Manual Disconnects Cannot Break DC

Load Current

In DC systems, there is no natural current zero-crossing. Once an arc forms during contact separation, it can persist until sufficient resistance is introduced to extinguish it.

Manual disconnect switches do not incorporate arc control features such as magnetic blowout systems or arc

chambers, and the contact separation speed depends on manual operation. As a result, the arc remains

concentrated between the contacts, leading to high localized temperatures, material erosion, and rapid

degradation. In severe cases, this can result in contact welding or catastrophic failure.Practical Considerations

Even when systems are intended to operate under noload conditions, residual current, system capacitance, or

fault conditions may result in unintended current flow.For this reason, system design should not rely solely on

operator procedure. Proper switching devices must beincorporated to ensure safe operation under allconditions.

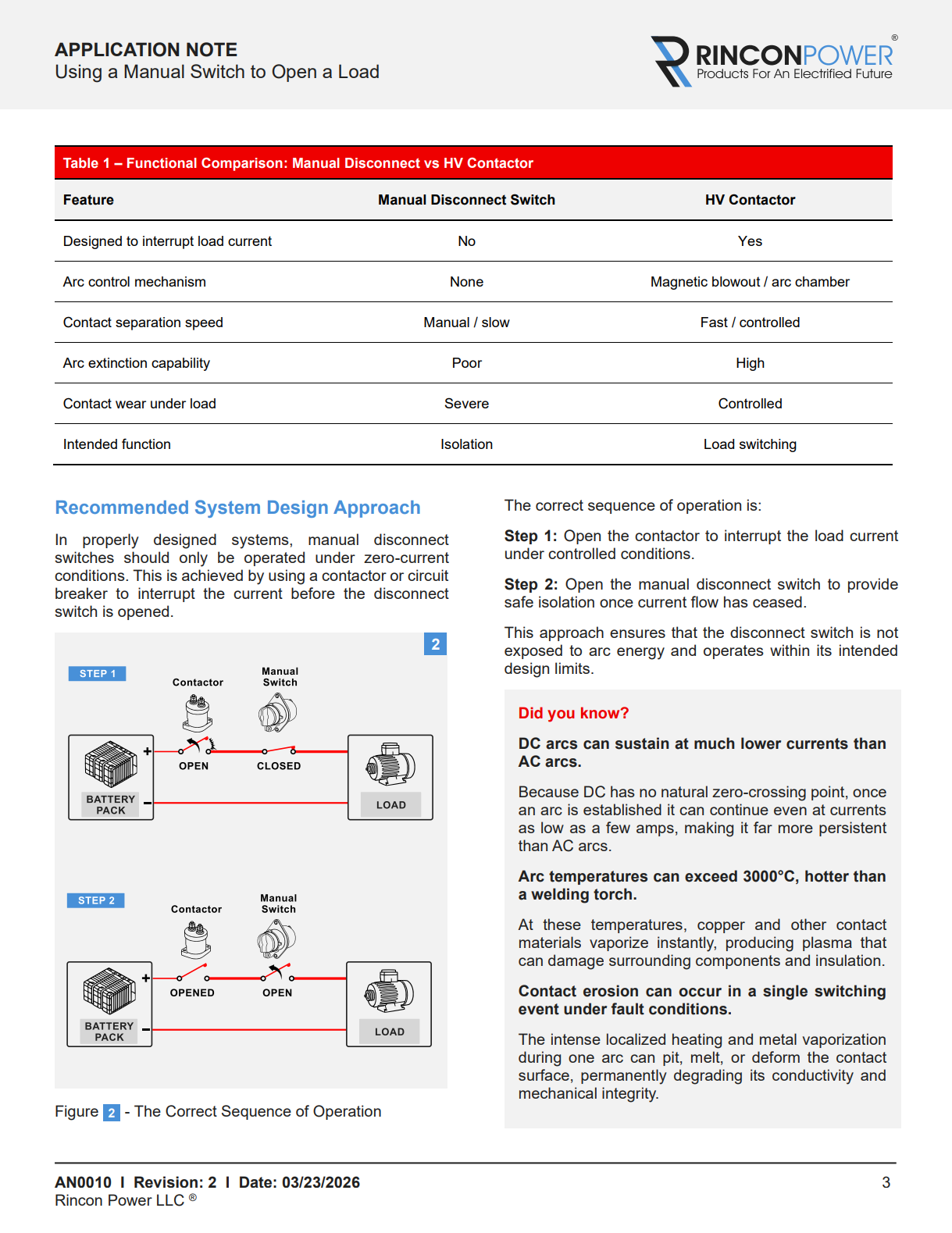

Manual disconnect switches should be clearly defined inthe system as isolation devices only, not as switching devices.
