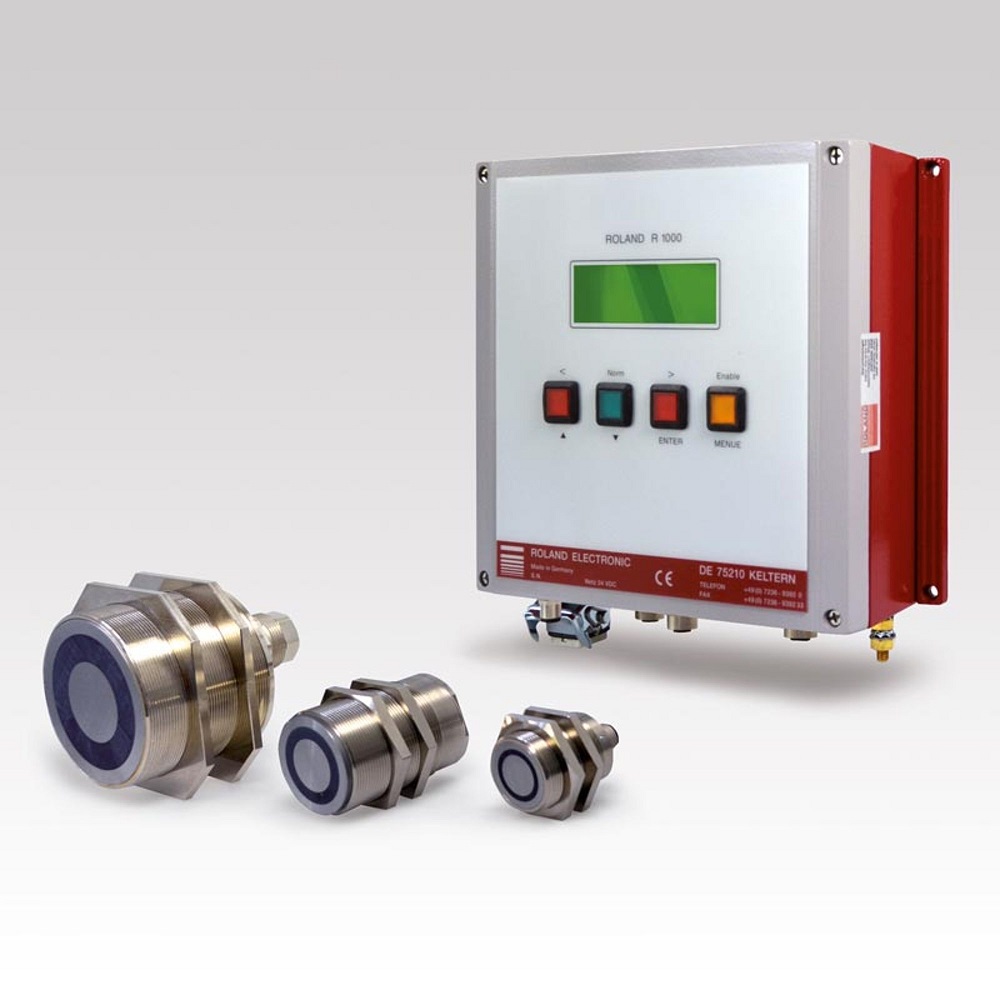

E20提供了一种对所有FE金属都具有空气间隙容差的单探头双板检测。
应用厚度可达12毫米。
特点和技术数据
工作原理： 电磁的
材料:
FE 金属
传感器编号： 1到4个传感器可连接
材料厚度:
0.1 – 12.0 毫米
程序: 255个测量程序可选
操作： 通过按钮操作；设置后（Teach-In）通过灯光信号反馈（检测0张、1张和2张纸）；
额外显示纸张厚度，以毫米或英寸为单位
版本： 可作为壁挂式和前面板外壳
设备差异
E20(-4P)-B-R(-FP): 由PLC控制，继电器版本
E20(-4P)-B-O(-FP): 来自PLC的控制，光耦合器版本
E20(-4P)-C-O(-FP): 数据备份，PLC控制，光耦版本
E20(-4P)-PN-S(-FP)*：数据备份，Profinet控制
* among Profinet 所有常见的现场总线系统都可用。
所有装置都配有1个或4个传感器，并且有壁挂式或前面板版本可供选择。

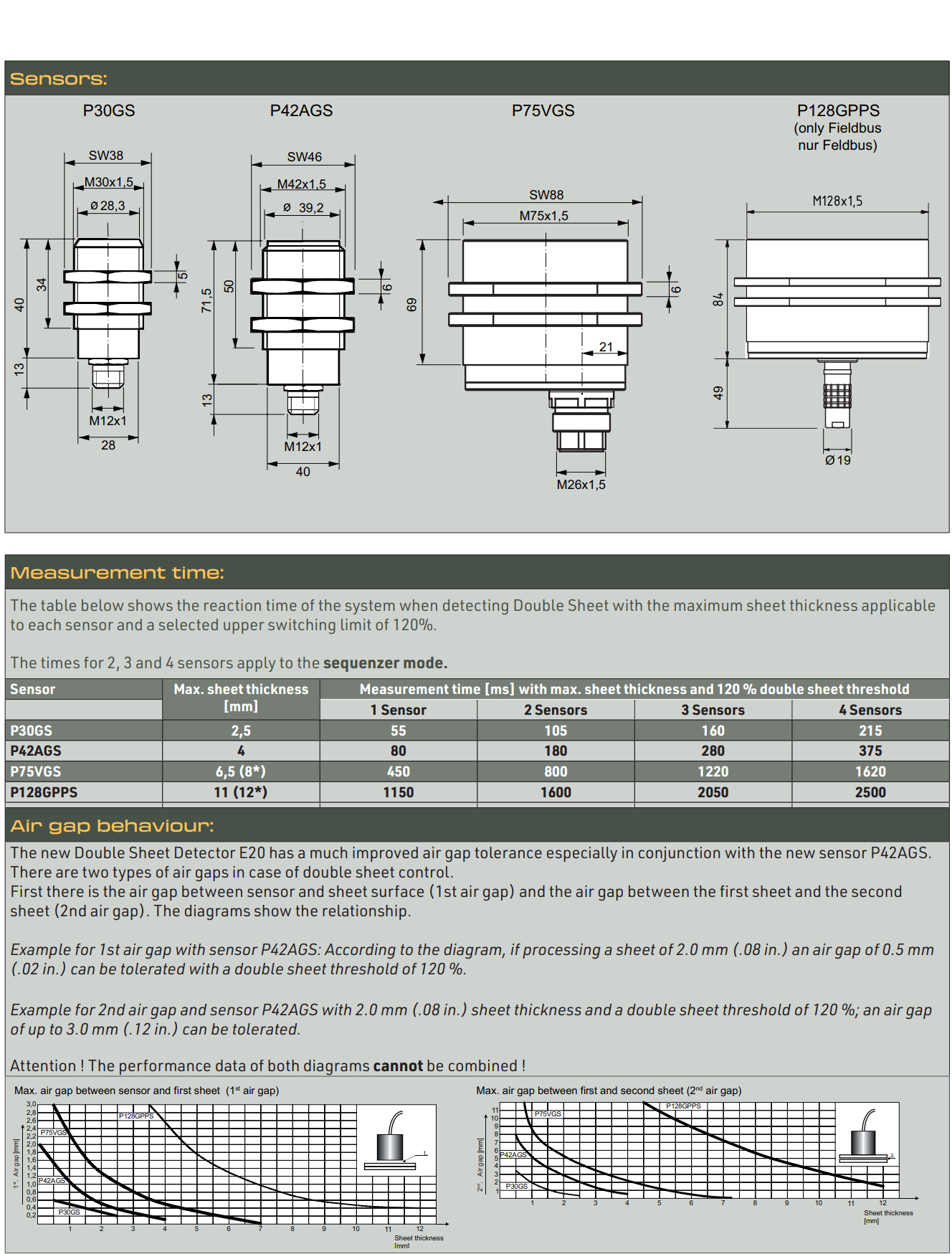

传感器
传感器名称 功能原理 材料 材料厚度
P30GS 电磁的 FE材料 0.1 - 2.5 毫米
P42AGS 电磁的 FE材料 0.2 - 4.0 毫米
P75VGS 电磁的 FE材料 0.2 - 6.5 (8.0*) 毫米
P128GPPS 电磁的 FE材料 1.0 - 12.0 毫米
* 0 毫米空气间隙
E20 Fieldbus version Wall mount enclosure Panel mount (FP)
Part no. Description Part no. Description
E20-XX-S 1 Sensor E20-XX-S-FP 1 Sensor
E20-4P-XX-S 4 Sensoren E20-4P-XX-S-FP 4 Sensoren
XX: DN=DeviceNet (B-Coding), DNT=DeviceNet (A-Coding), COP=CANopen (A-Coding), CP=CANopen (B-Coding), CC=CC-Link, IN= INTERBUS,
PR=PROFIBUS DP, PN=PROFINET IO, EN=EtherNet/IP, ET=EtherCAT
E20 IO version Wall mount enclosure Panel mount (FP)
Part no. Description Part no. Description
E20-B-O
E20-B-R
E20-C-R
E20-C-O
1 Sensor, (O) = Opto coupler;
(R) =Outputs Relais;
(B) = no data backup;
(C)= with data backup
E20-B-O-FP
E20-B-R-FP
E20-C-R-FP
E20-C-O-FP
1 Sensor, (O) = Opto coupler;
(R) =Outputs Relais;
(B) = no data backup;
(C)= with data backup
E20-4P-B-O
E20-4P-B-R
E20-4P-C-R
E20-4P-C-O
4 Sensors, (O) = Opto coupler;
(R) =Outputs Relais; (B) = no data
backup; (C)= with data backup
E20-4P-B-O-FP
E20-4P-B-R-FP
E20-4P-C-R-FP
E20-4P-C-O-FP
4 Sensors, (O) = Opto coupler;
(R) =Outputs Relais; (B) = no data
backup; (C)= with data backup
Sensors
Part no. Description Part no. Description
P30GS* Electro magnet up to 2.5 mm** P75VGS Electro magnet up to 6,5 mm**
P42AGS Electro magnet up to 4.0 mm** P128GPPS Electro magnet up to 12,0 mm**
* The sensor P30GS should only be used in case of confined space situations. The standard sensor should be P42AGS ** single sheet thickness
Sensor cable
For P30GS + P42AGS: For P128GPPS: For all other sensors:
Part no. Part no. Part no. Description
CPM12S-G*** / SM12CP-G**** CPS-GOIL Straight receptacle
CPM12S-W CPS-WOIL Right angle receptacle
SM12CPM12S-GG SM12CPPPS-GG SM12CPS-GG Fieldbus technology, straight receptable
SM12CPM12S-GW SM12CPPPS-GW SM12CPS-GW Fieldbus technology, right angle receptable
Standard cable length is 5 meters. Customized lengths up to 50 meters can be ordered; larger lengths upon request. *** Coupling joint to sensor **** Evaluation electronic to coupling joint
Accessories
Part no. Description Part no. Description
SH42GS* Spring loaded sensor brackets
with vacuum cup
(excepting SH42GS)
for P42GS and P42AGS
*no vacuum cup
SHK Clamping bracket for SH42GS, SHS42GS (-85),
SHS42G-FB (80)
SHS42GS / SHS42GS-85 SHX-AZ2-25 Adaptor (Shank) 25 mm for SHX42 / SHX42-DL
SHS42G-FB / SHS42G-FB80 2395110 Rubber lips for vacuum cup
SHX42 / SHX42-DL RPP1000 Software for parameter back up on a PC (Version
C only)
