 在管材弯曲方面，制造企业会面临许多众所周知的质量问题，如： - 管材的焊缝断裂- 管材的焊缝爆裂- 弯管的几何形状（弯曲角度）偏差很大 这些没有弯曲好的管材如排气管，可能无法入模或会在成品组装时导致质量问题。为获得一致的加工结果，管材的焊缝必须总是一致地朝向同一个方向。 管材加工设备（如管材进料机、弯管机、冲压机或液压成型机）在生产诸如后桥，排气管、触感式车折蓬、发动机架、气囊管、座椅框架等产品时，焊缝检测是保证获得可重复性生产结果的一个重要先决条件。 为适应这一需要，德国罗兰电子公司（Roland Electronic）开发研制出SND40 焊缝检测系统。这一创新系统采用以下三种感应原理，因此能解决焊缝检测中最困难的问题：- 漏磁通量（magnetic leaking flux）- 电涡流 (eddy current)- 漏磁通量+涡流感应 为了满足焊缝定位检测中的特殊要求，新型的基于PC的SND40焊缝检测系统将模拟传感技术和数字信号解析技术结合在一起。 精心调试过的漏磁通量传感器及新型涡流式探头使得SND40焊缝检测系统非常灵活。 该套基于PC的检测系统配有触摸屏、现场总线及以太网接口，从而提供人机界面对话菜单。可检测直径为5-1000mm (0.19-39.37英寸)的所有金属管材。 德国罗兰电子公司（Roland）在焊缝检测行业已有二十多年历史，已帮助大量客户解决许多焊缝检测中的高难度问题。 ·操作界面 通过触摸屏操作，非常简单 大LCD液晶显示屏，直观显示传感器信号及分析结果 可选键盘和鼠标操作 带打印机端口 足够用于存储测量程序的内存 功能 所有金属管材的焊缝检测 管材直径：5-1000mm 检测速率：最大可达300转/秒（取决于管材直径） 典型应用：管材进料机，弯管机和液压成型加工 数字信号分析，同时检测管材转速，检测可靠 漏磁通量和涡流传感相结合，保证了最好的通用性 传感器 漏磁通量传感器NS9 / NS12 和 NS9SC 圆柱型涡流式探头用来测量非铁磁性材质 漏磁通量和涡流组合式传感器NS9S-EC 传感器的安装传感器可安装在俯视或仰视需检测管材的任何角度。但是，为防止弄脏传感器，推荐采用鸟瞰（从传感器前方俯视）的方式。传感器安装时应保证焊缝和管材转动方向需呈直角。 如将传感器安装在提升气缸附带的弹性支架里，因为弹性橡胶垫片的使用，即使传感探头与管材直接接触，也能提供一定的伸缩，从而取得最可靠的检测结果。

Encircling Coil System

EC15 / EC30 / EC90

Eddy Current Inspection and Seam Detection

for metallic semi- finished products

such as tubes, wires, strands and cables.

● Modular Design, exchangable coil principle

● Diameter ranges:

EC15: 1mm ... 15mm (in steps of 1mm)

EC30: 3mm ... 30mm (in steps of 1mm)

EC90: 8mm ... 90mm (in steps of 2mm)

● Differential and absolute coil

● Version with E-magnet for FE

Sensors and accessories

Order information Description

P30GS Sensor 30 mm Ø, without cable, with M12 sensor plug for sensor cable connection,

sensor with threaded body M30 x 1.5 mm, 2 flat nuts

P42AGS Sensor 42 mm Ø, without cable, but with sensor plug for sensor cable connection,

sensor with threaded body M42 x 1.5 mm, 2 flat nuts

P75VGS Sensor 75 mm Ø, without cable, but with sensor plug for sensor cable connection,

sensor with threaded body M75 x 1.5 mm, 2 flat nuts

SH42GS Spring loaded sensor bracket, for direct installation of sensors with threaded body M42 x 1.5 mm

SH75GS Spring loaded sensor bracket, for direct installation of sensors with threaded body M75 x 1.5 mm

SHS42G-FB Spring loaded sensor bracket, for direct installation of sensors with threaded body M42 x 1.5 mm

with bellow-shaped vacuum cup, without clamping bracket, suction cup diameter 100 mm

SHS42G-FB80 Spring loaded sensor bracket, for direct installation of sensors with threaded body M42 x 1.5 mm

with bellow-shaped vacuum cup, without clamping bracket, suction cup diameter 80 mm

SHS42GS Spring loaded sensor bracket, for direct installation of sensors with threaded body M42 x 1.5 mm

with vacuum cup, without clamping bracket, suction cup diameter 110 mm

SHS42GS-85 Spring loaded sensor bracket, for direct installation of sensors with threaded body M42 x 1.5 mm

with vacuum cup, without clamping bracket, suction cup diameter 85 mm

SHS75GS Spring loaded sensor bracket, for direct installation of sensors with threaded body M75 x 1.5 mm

with vacuum cup, without clamping bracket, suction cup diameter 110 mm

SHX42 Spring loaded sensor bracket, for direct installation of sensors with threaded body M42 x 1.5 mm

with vacuum cup, suction cup diameter 110 mm SHX42-DL

SHX42-STRAP-80 Set of belt strap for SHX42, for spring travel 70 mm

SHX-AZ2-25 Adaptor 25mm for SHX42, for 25mm clamping collar

SP42GS Suction cup, for direct installation of sensors with threaded body M42 x 1.5 mm

SP75GS Suction cup, for direct installation of sensors with threaded body M75 x 1.5 mm

SHK Clamping bracket, for SH42GS, SHS42GS, SH75GS, SHS75GS, for mounting the sensor

brackets to the customer specific destacking systems

SK90/42 Vacuum cup, with ball joint – for SHF90/42

SK90/42-1 Ball joint, with mounting plates - for SK90/42 and SHF90/42

SK90/42-2 Suction cup, with connecting part - for SK90/42 and SHF90/42

2395037 Spare rubber lips, for sensor bracket SHF90/42 or SK90/42

2395038 Gasket, made of rubber, for suction cup SP75GS and for sensor bracket SHS75GS

2395039 Spare rubber pad, for suction cup SP75GS and for sensor bracket SHS75GS

2395045 Spare rubber pad, red, for sensor bracket SHS42G-FB

2395046 Spare rubber pad, black, for sensor bracket SHS42G-FB

2395109 Spare rubber pad, for suction cup SP42GS and for sensor bracket SHS42GS and SHX42

2395110 Spare rubber lips, for sensor bracket SHS42 and SHX42 or suction cup SP42

2395168 Spare rubber lips, for sensor bracket SHS42GS-85

2395218 Bellows suction cup, for sensor bracket SHX42-DL

Cables

The standard length of the cables is 5 meters. Other lengths up to 50 meters made to order, larger

lengths upon request.

Order information Specification Description

CPM12S-G OILFLEX FD 810 CY

2 x 1 mm²

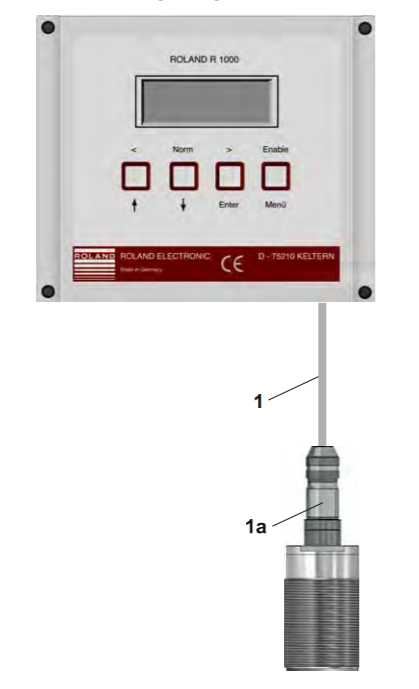

Cable for connecting sensor P30GS, P42AGS to E20. Wire-end

ferrules for connecting the control unit and straight cable socket for

connecting the sensor.

CPM12S-W OILFLEX FD 810 CY

2 x 1 mm²

Cable for connecting sensor P30GS, P42AGS to E20. Wire-end

ferrules for connecting the control unit and angled cable socket for

connecting the sensor.

CPS-GOIL OILFLEX FD 810 CY

2 x 1 mm²

Cable for connecting sensor P36GS, P42GS, P75GS, P75VGS to

E20. Wire-end ferrules for connecting the control unit and straight

cable socket for connecting the sensor.

CPS-WOIL OILFLEX FD 810 CY

2 x 1 mm²

Cable for connecting sensor P36GS, P42GS, P75GS, P75VGS to

E20. Wire-end ferrules for connecting the control unit and angled

cable socket for connecting the sensor.

SM12CPM12S-GG OILFLEX FD 810 CY

2 x 1 mm²

Cable for inserting a quick disconnect between E20 and sensor

P30GS, P42AGS in conjunction with cable CPM12S-G. Straight

cable plug for connecting the sensor.

SM12CPM12S-GW OILFLEX FD 810 CY

2 x 1 mm²

Cable for inserting a quick disconnect between E20 and sensor

P30GS, P42AGS in conjunction with cable CPM12S-G. Angled

cable plug for connecting the sensor.

SM12CPS-GG OILFLEX FD 810 CY

2 x 1 mm²

Cable for inserting a quick disconnect between E20 and P36GS,

P42GS, P75GS, P75VGS in conjunction with cable CPM12S-G.

Straight cable plug for connecting the sensor.

SM12CPS-GW OILFLEX FD 810 CY

2 x 1 mm²

Cable for inserting a quick disconnect between E20 and P36GS,

P42GS, P75GS, P75VGS in conjunction with cable CPM12S-G.

Angled cable plug for connecting the sensor.

2b Cable socket (5 contacts) 3b Cable socket (7 contacts)

 Order no.: 2276116 (straight)

 2276117 (90° angle)

 Order no.: 2276637 (straight)

 2277639 (90° angle)

 Pin 1 black (1) [white]

 Pin 2 black (2) [brown]

 Pin 3 N.C.

 Pin 4 N.C.

 Pin 5 blank (shield)

 Pin 1 N.C.

 Pin 2 N.C.

 Pin 3 N.C.

 Pin 4 N.C.

 Pin 5 black (1) [white]

 Pin 6 black (2) [brown]

 Pin blank (shield)

Order information Description

P34S Sensor 34 mm Ø, without cable, with sensor plug for sensor cable connection,

sensor without threaded body

P36GS Sensor 36 mm Ø, without cable, with sensor plug for sensor cable connection,

sensor with threaded body M36 x 1.5, 2 flat nuts

P42G Sensor 42 mm Ø, with fixed sensor cable, sensor with threaded body M42 x 1.5, 2 flat nuts

P42GS Sensor 42 mm Ø, without cable, with sensor plug for sensor cable connection,

sensor with threaded body M42 x 1.5, 2 flat nuts

P75GS Sensor 75 mm Ø, without cable, with sensor plug for sensor cable connection,

sensor with threaded body M75 x 1.5, 2 flat nuts

P75S Sensor 75 mm Ø, without cable, with sensor plug for sensor cable connection,

sensor without threaded body

P75VGS Sensor 75 mm Ø, without cable, with sensor plug for sensor cable connection,

sensor without threaded body

SH36GS Spring loaded sensor bracket for direct installation of sensors with threaded body M36 x 1.5 mm

SHS36GS Spring loaded sensor bracket for direct installation of sensors with threaded body M36 x 1.5 mm,

with vacuum cup, with clamping bracket

SP36GS Suction cup for direct installation of sensors with threaded body

M36 x 1.5 mm

SHK Clamping bracket for SHS36GS and SH36GS,

for mounting the sensor brackets to the customer specific destacking systems

2395109 Spare rubber pad for sensor bracket SHS36GS and suction cup SP36GS

2395110 Spare rubber gasket for sensor bracket SHS36GS and suction cup SP36GS

12.5 Cable plugs and cable sockets

Order information Description

2276116 Cable socket, 5 pin, M12, Binder series 713, for P30GS and P42AGS

2276117 Cable socket 90°, 5 pin, M12, Binder series 713, for P30GS and P42AGS

2276637 Cable socket, 7 pin, Tuchel-Amphenol C164-637M-7S, for P36GS, P42GS, P75GS, P75VGS

2277639 Cable socket 90°, 7 pin, Tuchel-Amphenol C164-639F-7S, for P36GS, P42GS, P75GS,

P75VGS

2277704 Cable plug, 5 pin, M12, Binder series 713, for extension cable (quick disconnect)

12.6 Other accessories

Order information Description

RPP Software for data backup

SD9KRS232D9S Cable for RS232 connection to PC, 3 m length

PWSE10 Program selector switch for manual selection of 10 programs
