E20 Fieldbus version Wall mount enclosure Panel mount (FP)

Part no. Description Part no. Description

E20-XX-S 1 Sensor E20-XX-S-FP 1 Sensor

E20-4P-XX-S 4 Sensoren E20-4P-XX-S-FP 4 Sensoren

XX: DN=DeviceNet (B-Coding), DNT=DeviceNet (A-Coding), COP=CANopen (A-Coding), CP=CANopen (B-Coding), CC=CC-Link, IN= INTERBUS,

 PR=PROFIBUS DP, PN=PROFINET IO, EN=EtherNet/IP, ET=EtherCAT

E20 IO version Wall mount enclosure Panel mount (FP)

Part no. Description Part no. Description

E20-B-O

E20-B-R

E20-C-R

E20-C-O

1 Sensor, (O) = Opto coupler;

(R) =Outputs Relais;

(B) = no data backup;

(C)= with data backup

E20-B-O-FP

E20-B-R-FP

E20-C-R-FP

E20-C-O-FP

1 Sensor, (O) = Opto coupler;

(R) =Outputs Relais;

(B) = no data backup;

(C)= with data backup

E20-4P-B-O

E20-4P-B-R

E20-4P-C-R

E20-4P-C-O

4 Sensors, (O) = Opto coupler;

(R) =Outputs Relais; (B) = no data

backup; (C)= with data backup

E20-4P-B-O-FP

E20-4P-B-R-FP

E20-4P-C-R-FP

E20-4P-C-O-FP

4 Sensors, (O) = Opto coupler;

(R) =Outputs Relais; (B) = no data

backup; (C)= with data backup

Sensors

Part no. Description Part no. Description

P30GS* Electro magnet up to 2.5 mm** P75VGS Electro magnet up to 6,5 mm**

P42AGS Electro magnet up to 4.0 mm** P128GPPS Electro magnet up to 12,0 mm**

* The sensor P30GS should only be used in case of confined space situations. The standard sensor should be P42AGS ** single sheet thickness

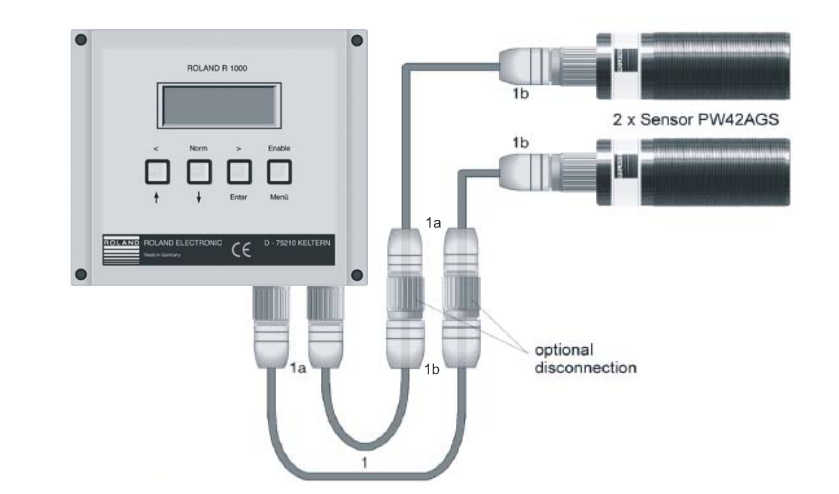

Sensor cable

For P30GS + P42AGS: For P128GPPS: For all other sensors:

Part no. Part no. Part no. Description

CPM12S-G*** / SM12CP-G**** CPS-GOIL Straight receptacle

CPM12S-W CPS-WOIL Right angle receptacle

SM12CPM12S-GG SM12CPPPS-GG SM12CPS-GG Fieldbus technology, straight receptable

SM12CPM12S-GW SM12CPPPS-GW SM12CPS-GW Fieldbus technology, right angle receptable

Standard cable length is 5 meters. Customized lengths up to 50 meters can be ordered; larger lengths upon request. *** Coupling joint to sensor **** Evaluation electronic to coupling joint

Accessories

Part no. Description Part no. Description

SH42GS* Spring loaded sensor brackets

with vacuum cup

(excepting SH42GS)

for P42GS and P42AGS

*no vacuum cup

SHK Clamping bracket for SH42GS, SHS42GS (-85),

SHS42G-FB (80)

SHS42GS / SHS42GS-85 SHX-AZ2-25 Adaptor (Shank) 25 mm for SHX42 / SHX42-DL

SHS42G-FB / SHS42G-FB80 2395110 Rubber lips for vacuum cup

SHX42 / SHX42-DL RPP1000 Software for parameter back up on a PC (Version

C only)
